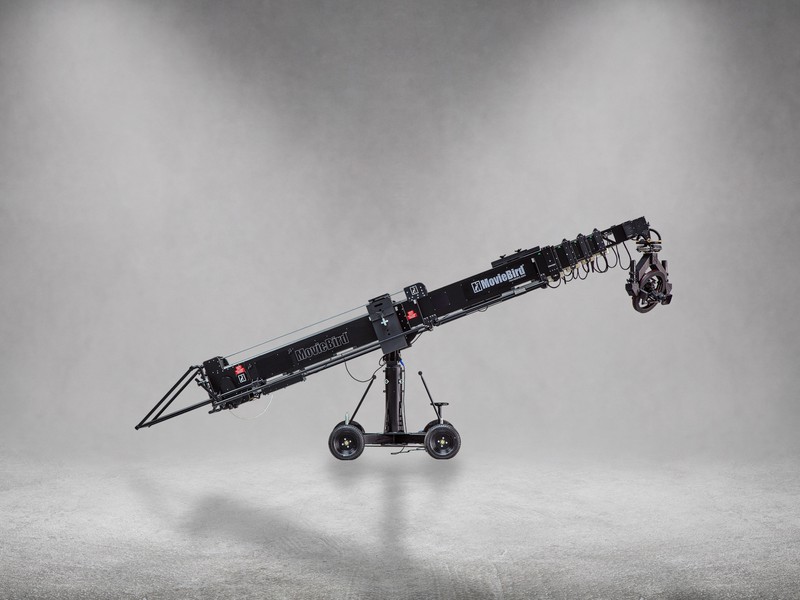

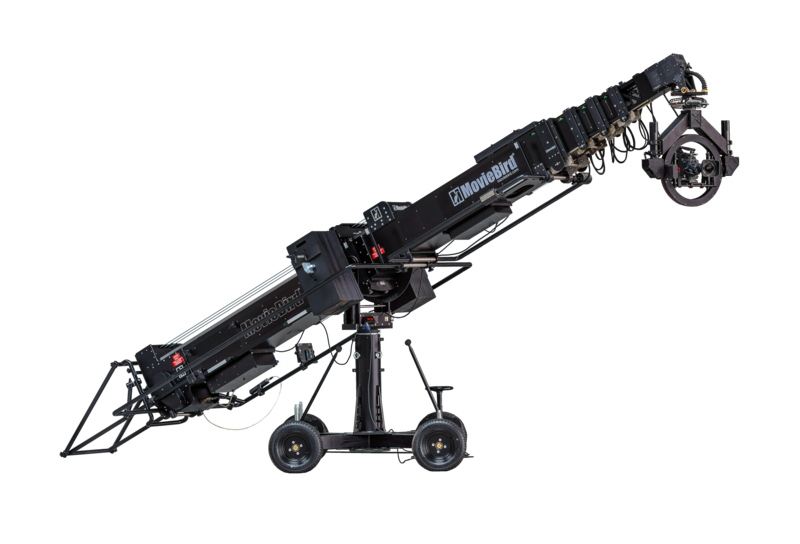

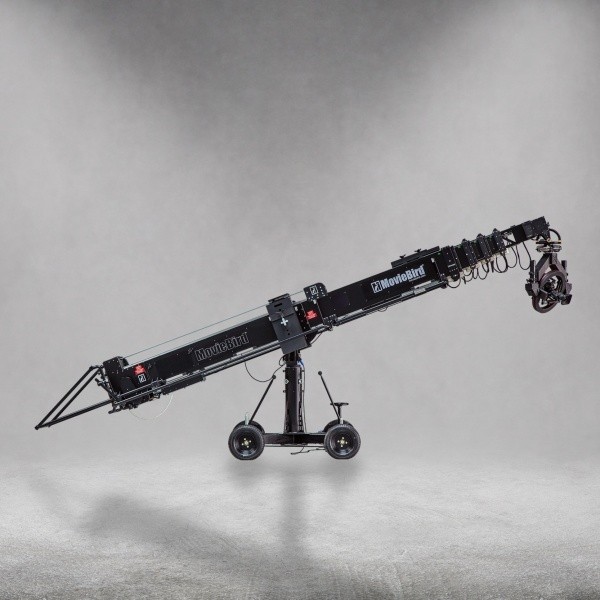

Moviebird 50XL
The MovieBird50XL was designed to handle very heavy head packages (maximum nose load is 80 kg). It’s a bit more unmanageable than the MovieBird52 and MovieBird45. Despite it’s reach of 50ft it’s still a very compact crane when retracted, easy to transport and move around on the film set. The short back end of only 2,6 meters makes it easy to maneuver in tight spaces and allows high tilt angle of up to 53 degrees. The MovieBird50XL also has a pair of telescopic rails that extend the back end for additional 1m for more leverage and easier arm control.

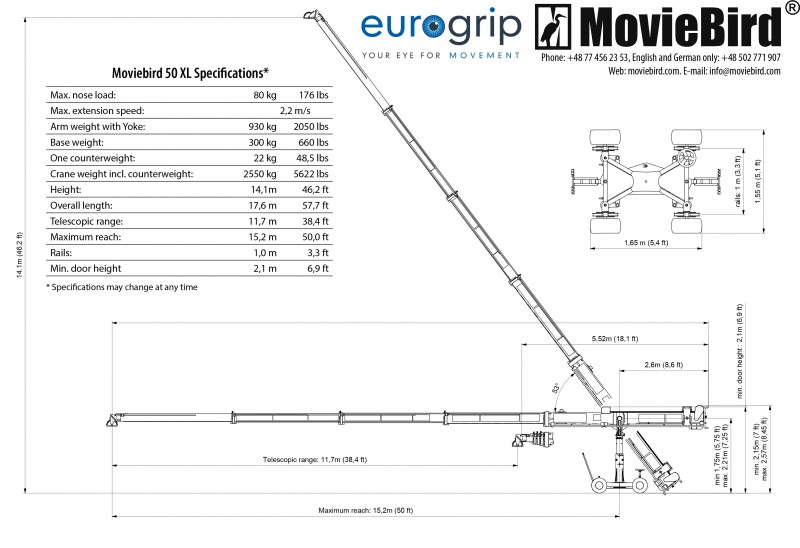

SPECS
Max Payload (Head + Camera)
80 kg (176.37 lbs)
Max Length (Pivot to Front End)
15.2 m (49.87 ft)
Min Length (Pivot to Front End)
2.92 m (9.58 ft)
Rear Section Length (Pivot to Rear End)
2.6 m (8.53 ft)
Max Lens Height Overslung
15.1 m (49.54 ft)
Max Lens Height Underslung
14.1 m (46.26 ft)
Telescopic Travel
11.7 m (38.39 ft)
Telescopic Travel Speed
1.9 m/s (6.23 ft/s)
Dolly Length
1.65 m (5.4 ft)
Dolly Width
1,55 m (5.1 ft)
Total Maximum Weight
2250 kg (4960 lbs)
Footprint 360° Length
6 m (19.69 ft)
Footprint 360° Width
6 m (19.69 ft)
Footprint 180° Length
6 m (19.69 ft)
Footprint 180° Width
4 m (13.12 ft)
Min Door Width
1.6 (5.25 ft)
Min Door Height
2.1 m (6.89 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
Yes
Raincover
Yes
Track Wheels
Yes
Track Size
1000 mm (39.37 inch)
