Moviebird 62
The MovieBird 62 is an extremely versatile telescopic camera crane suitable for working on any film set, TV studio or sports arena. The MovieBird 62 is easy to operate and will carry all types of camera packages up to 90 kg in weight.
Despite the MovieBird 62’s reach of 62 ft , it can be transported in a standard truck.

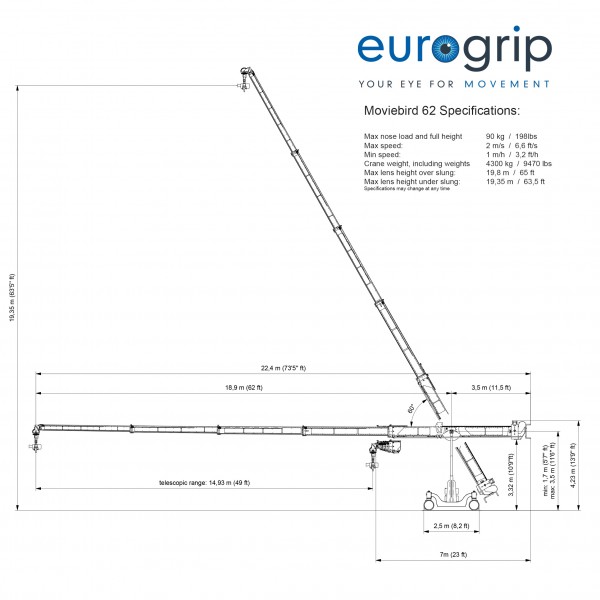

SPECS
Max Payload (Head + Camera)
90 kg (198 lbs)
Max Length (Pivot to Front End)
18.9 m (62 ft)
Min Length (Pivot to Front End)
3.97 m (13.02 ft)
Rear Section Length (Pivot to Rear End)
3.5 m (11.48 ft)
Max Lens Height Overslung
20.35 m (66.77 ft)
Max Lens Height Underslung
19.35 m (63.48 ft)
Telescopic Travel
14.93 m (48.98 ft)
Telescopic Travel Speed
1.9 m/s (6.23 ft/s)
Dolly Length
2.5 m (8.2 ft)
Dolly Width
1.6 m (5.25 ft)
Total Maximum Weight
4580 kg (10097 lbs)
Footprint 360° Length
8 m (26.25 ft)
Footprint 360° Width
8 m (26.25 ft)
Footprint 180° Length
8 m (26.25 ft)
Footprint 180° Width
5 m (16.40 ft)
Min Door Width
1.7 m (5.58 ft)
Min Door Height
2.25 m (7.38 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
Yes
Raincover
Yes
Track Wheels
No
