Moviebird 45
The Moviebird45 is a versatile telescopic crane suitable for any film set or TV studio. The crane is universal in use and depending on the weight of the camera package, it is possible to change the length and bring the reach from the arm from 35 ft to 45 ft (10,67m to 13,72 m) in a few seconds. The Moviebird45 is the most favorite telescopic crane on the market today.

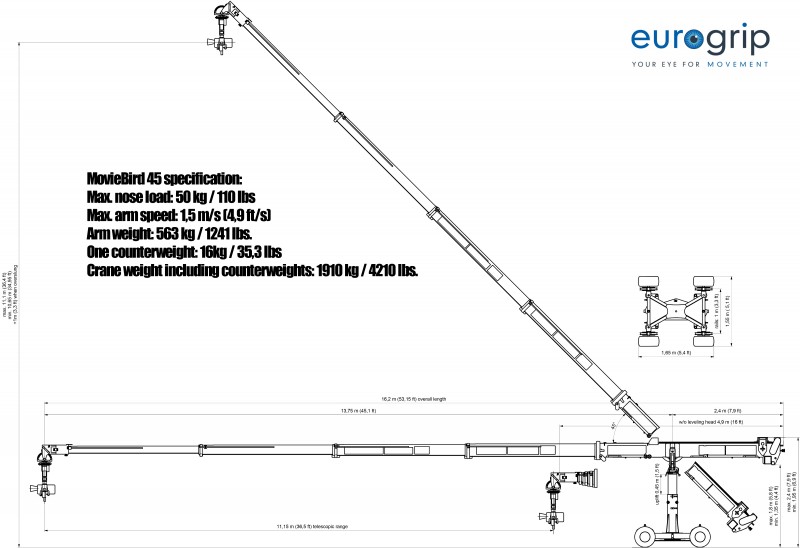

SPECS
Max Payload (Head + Camera)
50 kg (110.23 lbs)
Max Length (Pivot to Front End)
13.75 m (45.11 ft)
Min Length (Pivot to Front End)
2.5 m (8.2 ft)
Rear Section Length (Pivot to Rear End)
2.4 m (7.87 ft)
Max Lens Height Overslung
12 m (39.7 ft)
Max Lens Height Underslung
11 m (36.42 ft)
Telescopic Travel
11.15 m (36.58 ft)
Telescopic Travel Speed
1.5 m/s (4.9 ft/s)
Dolly Length
1.65 m (5.4 ft)
Dolly Width
1.55 m (5.09 ft)
Total Maximum Weight
1910 kg (4211 lbs)
Footprint 360° Length
6 m (19.69 ft)
Footprint 360° Width
6 m (19.69 ft)
Footprint 180° Length
6 m (19.69 ft)
Footprint 180° Width
4 m (13.12 ft)
Min Door Width
1.55 m (5.09 ft)
Min Door Height
2,06 m (6.76 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
Yes
Raincover
Yes
Track Wheels
Yes
Track Size
1000 mm (39.37 inch)
