Moviebird 24

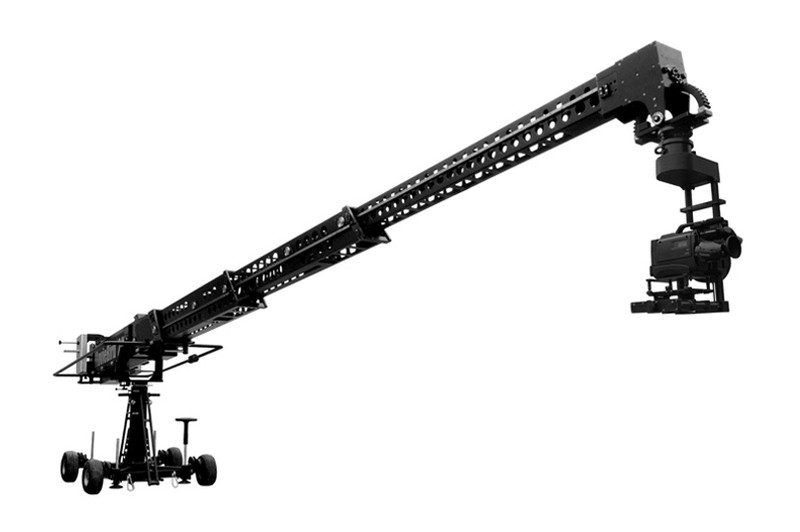

The MovieBird24 is a versatile telescopic crane suitable for any film set or TV studio. The crane is universal in use and depending on the weight of the camera package. The MovieBird24 is the next generation crane also having a state-of-the-art patented safety belt transmission.

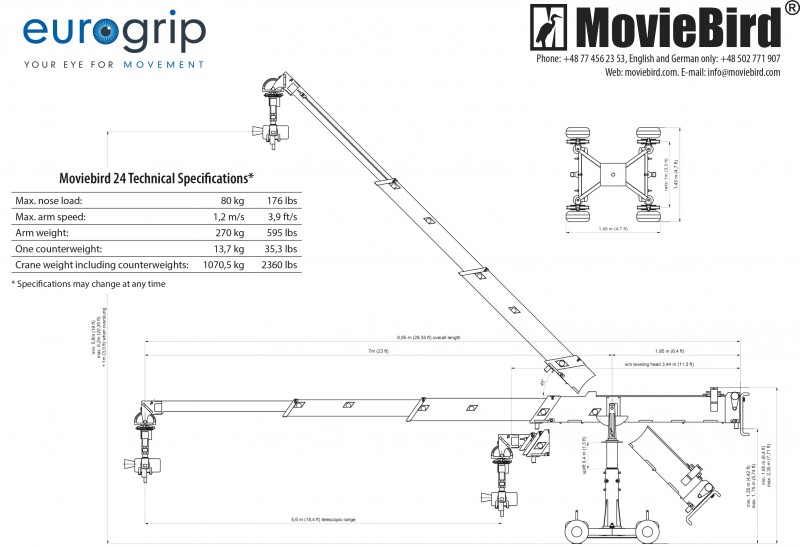

SPECS
Max Payload (Head + Camera)
80 kg (176.37 lbs)
Max Length (Pivot to Front End)
7 m (22.97 ft)
Min Length (Pivot to Front End)
1.49 m (4.88 ft)
Rear Section Length (Pivot to Rear End)
1.95 m (6.40 ft)
Max Lens Height Overslung
7.2 m (23.62 ft)
Max Lens Height Underslung
6.2 m (20.34 ft)
Telescopic Travel
5.6 m (18.37 ft)
Telescopic Travel Speed
1.2 m/s (3.9 ft/s)
Total Maximum Weight
1070 kg (2360 lbs)
Footprint 360° Length
5 m (16.4 ft)
Footprint 360° Width
5 m (16.4 ft)
Footprint 180° Length
5 m (16.4 ft)
Footprint 180° Width
3 m (9.84 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
Yes
Raincover
Yes
Track Wheels
Yes
Track Size
620/1000 mm (24.41/39.37 inch)
