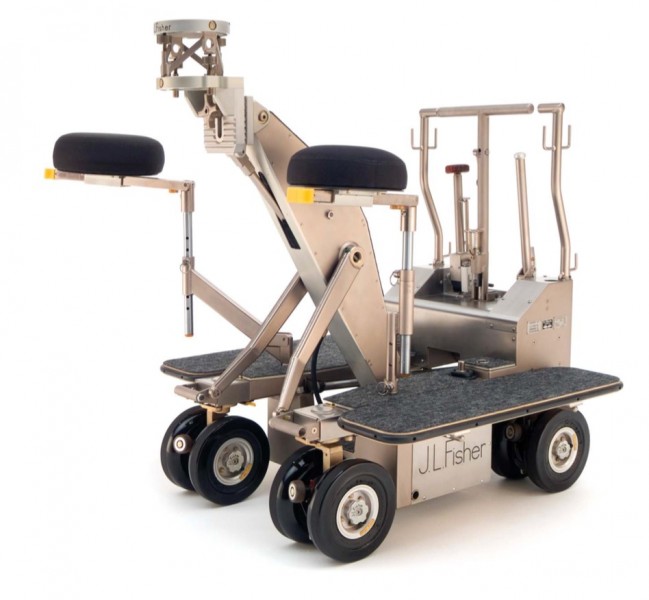

J.L. Fisher Dolly 11
This is the smallest Fisher dolly, compact "lightweight" and maneuverable. The Dolly 11 has similar characteristics and operating as Dolly 10. This Fisher dolly is designed and produced to meet the demands of both the film and television industry. The compact size, the three-way control and the very stable lift arm provides a wide and flexible deployment. The Fisher dolly is reliable, quiet, smooth in operation and secure.
SPECS
Max Payload
408.23 kg (900 lbs)
Dolly Length
1.02 m (3.35 ft)
Dolly Width
0.65 m (2.13 ft)
Dolly Weight
139.35 kg (306.99 lbs)
Max Lift Range
1299 mm (51.14 inch)
Min Lift Range
340 mm (13.39 inch)
Vertical Travel
847 mm (33.35 inch)
Power Requirement
220 V, 16 Amp
Internal Battery Power
No
Curved Track
Yes
Min Turn Circle
0.41 m (1.35 ft)
Track Size
620 mm (24.41 inch)
Head Fitting
Mitchel, Bowl, Elemac
Steering: Crab Mode
Yes
Steering: Round Mode
Yes
Steering: 2 Wheel Front
Yes
Steering: 2 Wheel Back
Yes
Electric Lift
No
Hydraulic Lift
No
Air Lift
Yes
