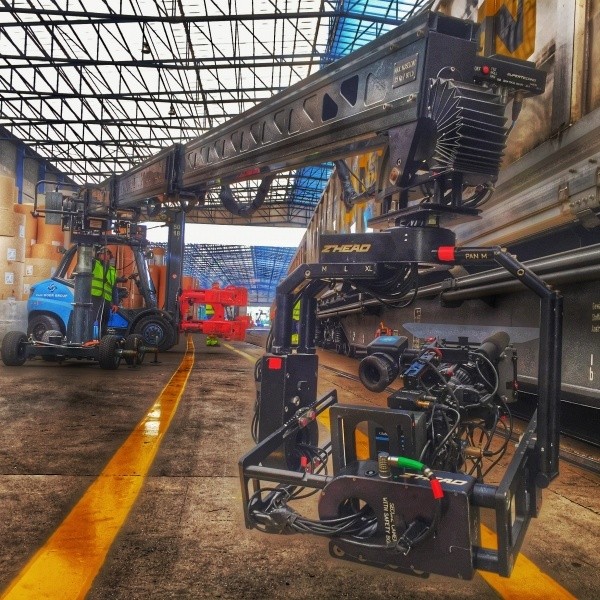

Supertechno 30
The Super Techno 30 is the classic among telescopic cranes. This Techno can perform complex camera movements without moving the dolly. If necessary this is of course possible, even on tracks.
All our Techno 30's are equipped with a Speed-box, making the speed of the telescopic arm almost twice as fast.
By default, the Super Techno 30 comes with a Z-Head.
SPECS
Max Payload (Head + Camera)
59 kg (130 lbs)
Max Length (Pivot to Front End)
9.56 m (31.36 ft)
Min Length (Pivot to Front End)
2.69 m (8.83 ft)
Rear Section Length (Pivot to Rear End)
2.36 (7.74 ft)
Max Lens Height Underslung
9.2 m (30.18 ft)
Telescopic Travel
6.87 m (22.54 ft)
Telescopic Travel Speed
2.8 m/s (9.19 ft/s)
Dolly Length
1.65 m (5.41 ft)
Dolly Width
1.36 m (4.46 ft)
Total Maximum Weight
1350 kg (2976 lbs)
Footprint 360° Length
6 m (19.69 ft)
Footprint 360° Width
6 m (19.69 ft)
Footprint 180° Length
6 m (19.69 ft)
Footprint 180° Width
4 m (13.12 ft)
Min Door Width
1.4 m (4.60 ft)
Min Door Height
2.15 m (7.05 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
No
Raincover
Yes
Track Wheels
Yes
Track Size
1446 mm (56.93 ft)
