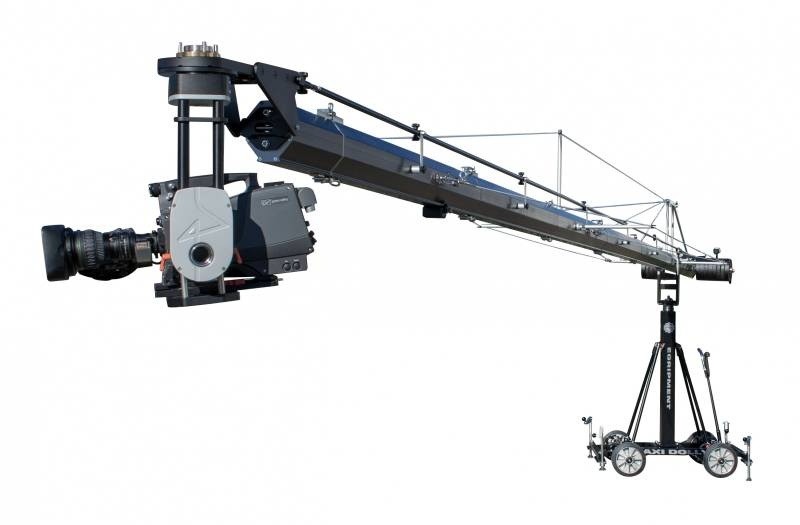

TDT Remote Crane
The TDT remote crane is a lightweight remote camera crane which can be combined with our Mosys B20, Mosys L40 or 306 remote heads.
The TDT crane is a modular system with arm sections of 1.5m/5ft long. The crane can be built in different versions from 1.5m/5ft to 9m/30ft. Due to its modular system, the TDT system allows you to create a variety of 6 different crane arms, with a maximum payload of 30kg/65lbs.
We can also offer a short back of 1.8m/5.91ft up to an arm length of 4.5m/14.76ft.
SPECS
Max Payload (Head + Camera)
30 kg (66.14 lbs)
Max Length (Pivot to Front End)
9 m (29.53 ft)
Min Length (Pivot to Front End)
1.5 m (4.92 ft)
Rear Section Length (Pivot to Rear End)
1.8/2.8 m (5.9/9.2 ft)
Max Lens Height Overslung
9.26 m (30.38 ft)
Total Maximum Weight
300 kg (661.39 lbs)
Footprint 360° Length
5 m (16.4 ft)
Footprint 360° Width
5 m (16.4 ft)
Footprint 180° Length
5 m (16.4 ft)
Footprint 180° Width
4 m (13.12 ft)
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
