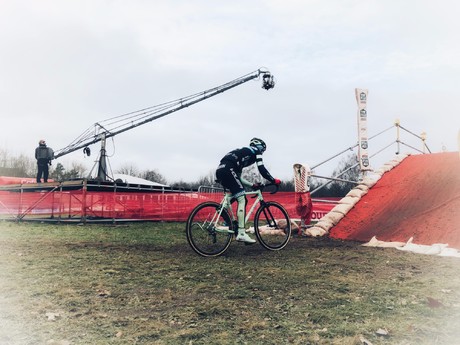

GF-9
The GF 9 is a long elegant modular remote crane system. It reaches a maximum length of 9m by 1 meter intervals. You can easily determine the desired length on-site.
The crane can carry a remote head and camera system of 25kg to 45kg depending on the length.
This crane is (like all models by GF) transported on a cart that passes through a standard door.
SPECS
Max Payload (Head + Camera)
30 kg (66.14 lbs)
Max Length (Pivot to Front End)
9 m (29.53 ft)
Min Length (Pivot to Front End)
2.5 m (8.2 ft)
Rear Section Length (Pivot to Rear End)
2.46 m (8.07 ft)
Max Lens Height Overslung
10.5 m (34.45 ft)
Max Lens Height Underslung
9.5 m (31.17 ft)
Dolly Length
1.27 m (4.17 ft)
Dolly Width
0.854 m (2.8 ft)
Total Maximum Weight
510 kg (1124.36 lbs)
Footprint 360° Length
6 m (19.69 ft)
Footprint 360° Width
6 m (19.69 ft)
Footprint 180° Length
6 m (19.69 ft)
Footprint 180° Width
3 m (9.84 ft)
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
