Scanner crane Image 1
Scanner crane Image 1   Scanner crane Image 2   Scanner crane Image 3

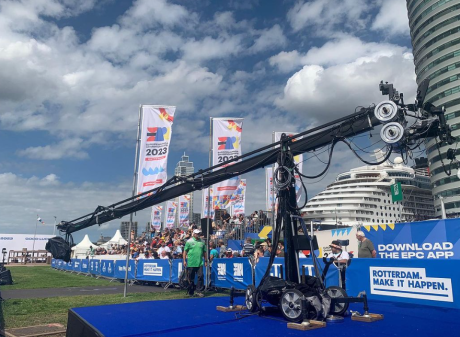

Scanner crane



This lightweight crane (JIB) is suitable for either one or two - man operation. The length is to be determined during installation.

The Scanner can be used either on wheels or on tracks. Its compact dolly can pass through every normal door.

The scanner comes by default with the Scanner Remote Head, suitable for most TV cameras.

SPECS

Max Payload (Head + Camera)
25 kg (55.12 lbs)
Max Length (Pivot to Front End)
5.25 m (17.22 ft)
Min Length (Pivot to Front End)
3.95 m (12.96 ft)
Rear Section Length (Pivot to Rear End)
1.6 m (5.25 ft)
Max Lens Height Underslung
6.3 m (20.67 ft)
Footprint 360° Length
4.5 m (14.76 ft)
Footprint 360° Width
4.5 m (14.76 ft)
Footprint 180° Length
4.5 m (14.76 ft)
Footprint 180° Width
2.5 m (8.20 ft)
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
