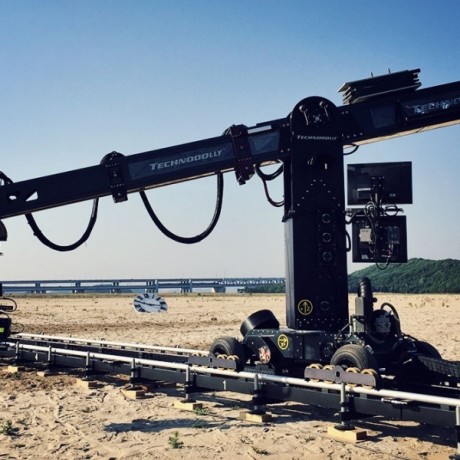

Technodolly 15 Image 1
Technodolly 15 Image 1   Technodolly 15 Image 2   Technodolly 15 Image 3   Technodolly 15 Image 4   Technodolly 15 Image 5   Technodolly 15 Image 6   Technodolly 15 Image 7   Technodolly 15 Image 8   Technodolly 15 Image 9   Technodolly 15 Image 10   Technodolly 15 Image 11

Technodolly 15



The TECHNO DOLLY is the first automated, fully programmable camera crane! This is the "smart" Techno-crane for all layering and time-laps applications.

Film directors can now conceive camera movements without compromise. Directors of Photography can shoot their ideas within minutes, and achieve memorable results. Producers appreciate how much time is saved.

In terms of its cinematographic possibilities, the TECHNO DOLLY can be used to create movements of unlimited length and complexity. These camera moves can be repeated exactly time after time, even at all different speeds. .

The TECHNO DOLLY stores unlimited amounts of moves and can repeat these shots months later, or on any other TECHNODOLLY in the world.

With its motorized track-dolly the TECHNO DOLLY covers an area that’s 8 meter wide, 4.6 meter high and 25meter long.

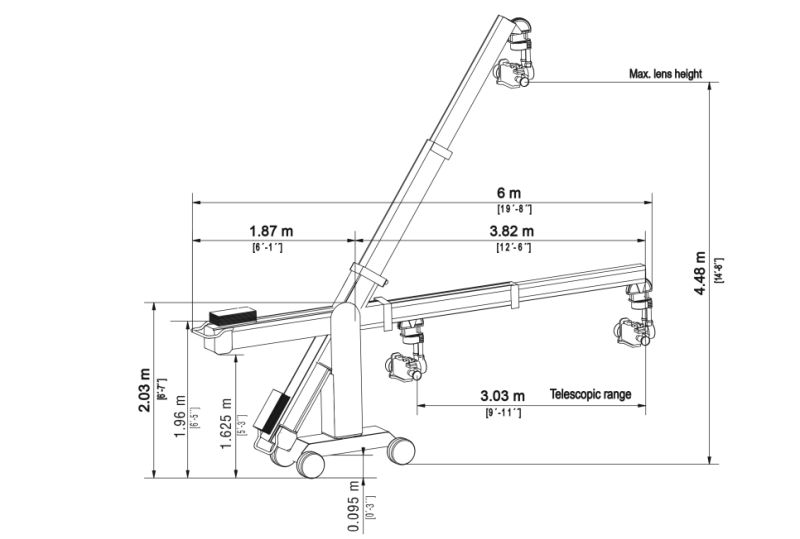

SPECS

Max Payload (Head + Camera)
59 kg (130.07 lbs)
Max Length (Pivot to Front End)
4.18 m (13.71 ft)
Min Length (Pivot to Front End)
0.95 m (3.12 ft)
Rear Section Length (Pivot to Rear End)
1.75 m (5.74 ft)
Max Lens Height Underslung
4.42 m (14.5 ft)
Max Speed
1.5 m/s (4.92 ft/s)
Max Track Speed
1.5 m/s (4.92 ft/s)
Max Track Length
18 m (59 ft)
Dolly Width
0.78 m (2.56 ft)
Total Maximum Weight
840 kg (1852 lbs)
Power Requirement
230 V, 32 Amp
Augmented Reality
Yes
Motion Control
Yes
Target Tracking
Yes
Real Time Tracking
Yes
Time Lapse
Yes
Focus, Iris, Zoom Control
Yes
Telescopic
Yes
Weather Proof
No
Track Wheels
Yes
