Technocrane 22

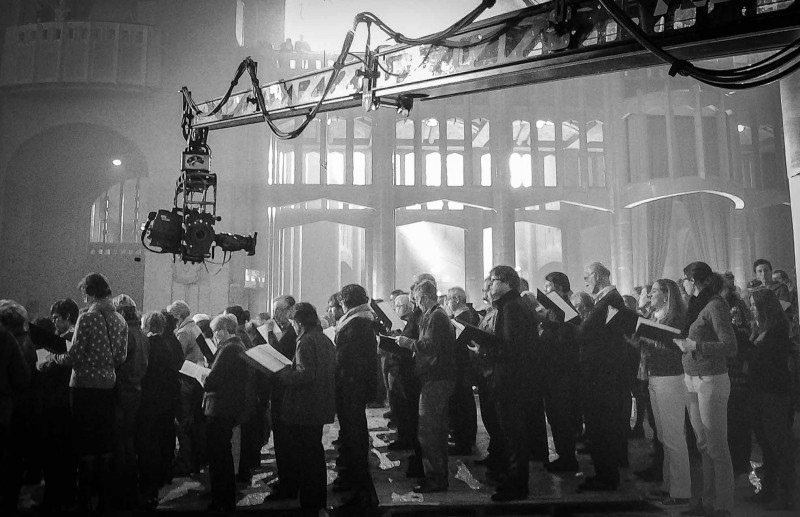

This is the lighter version of the standard Super Techno 22, but with its maximum length of over 6 meters it is one of the most used cranes in small or medium television-sets for the moment.
The compact design allows you to work in sets that are too small or complicated for "fixed" crane-arms, with all the advantages of a telescopic crane considering lighting and obstacles.
The arm can easily be disassembled. Stairs at the location are no problem. Due to it’s light design this crane can be operated by one man (swing and telescopic movement).
SPECS
Max Payload (Head + Camera)
23 kg (50.71 lbs)
Max Length (Pivot to Front End)
6.33 m (20.77 ft)
Min Length (Pivot to Front End)
1.61 m (5.28 ft)
Rear Section Length (Pivot to Rear End)
1.91 m (6.27 ft)
Max Lens Height Underslung
6.7 m (21.98 ft)
Telescopic Travel
4.72 m (15.49 ft)
Telescopic Travel Speed
1.5 m/s (4.92 ft/s)
Dolly Length
1.27 m (4.17 ft)
Dolly Width
0.854 m (2.8 ft)
Total Maximum Weight
317 kg (698 lbs)
Footprint 360° Length
4.5 m (14.76 ft)
Footprint 360° Width
4.5 m (14.76 ft)
Footprint 180° Length
4.5 m (14.76 ft)
Footprint 180° Width
2.5 m (8.2 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
No
Raincover
No
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
