Supertechno 22

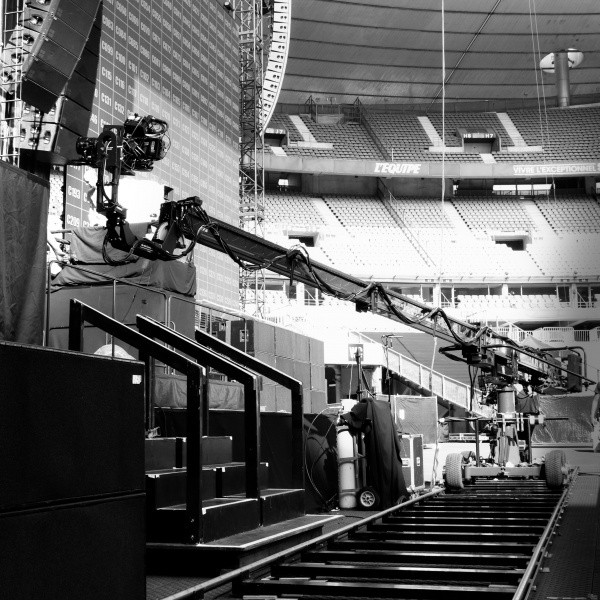

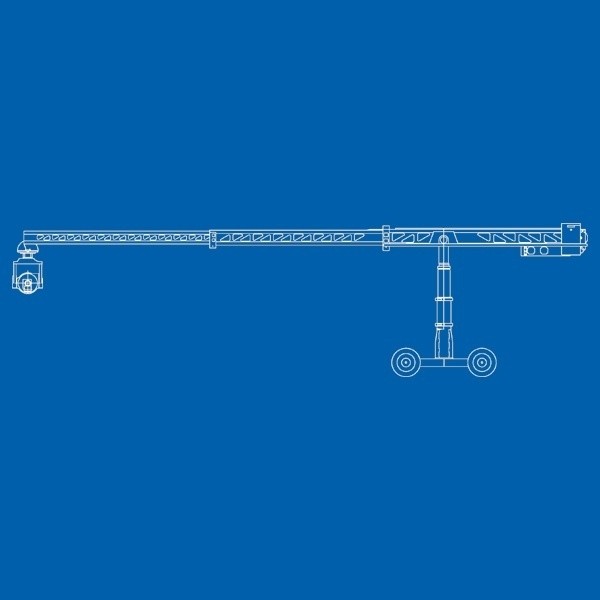

PDF productThe Super Techno 22 is the next step in our range of telescopic cranes. The 22, has the same profile and robustness as its bigger brothers (Techno 30 and 50) but it is still suitable for relatively small areas. The Techno 22 has the advantage it can be equipped with the heaviest cameras.
SPECS
Max Payload (Head + Camera)
59 kg (130 lbs)
Max Length (Pivot to Front End)
6.83 m (22.41 ft)
Min Length (Pivot to Front End)
1.7 m (5.58 ft)
Rear Section Length (Pivot to Rear End)
2.27 m (7.45 ft)
Max Lens Height Underslung
6.7 m (21.98 ft)
Telescopic Travel
5.13 m (16.83 ft)
Telescopic Travel Speed
1.9 m/s (5.42 ft/s)
Dolly Length
1.65 m (5.41 ft)
Dolly Width
1.36 m (4.46 ft)
Total Maximum Weight
920 kg (2028 lbs)
Footprint 360° Length
5 m (16.4 ft)
Footprint 360° Width
5 m (16.4 ft)
Footprint 180° Length
5 m (16.4 ft)
Footprint 180° Width
4 m (13.12 ft)
Min Door Width
1.36 m (4.46 ft)
Power Requirement
220 V, 16 Amp
Weather Proof
No
Raincover
Yes
Track Wheels
Yes
Track Size
1446 mm (59.93 inch)
