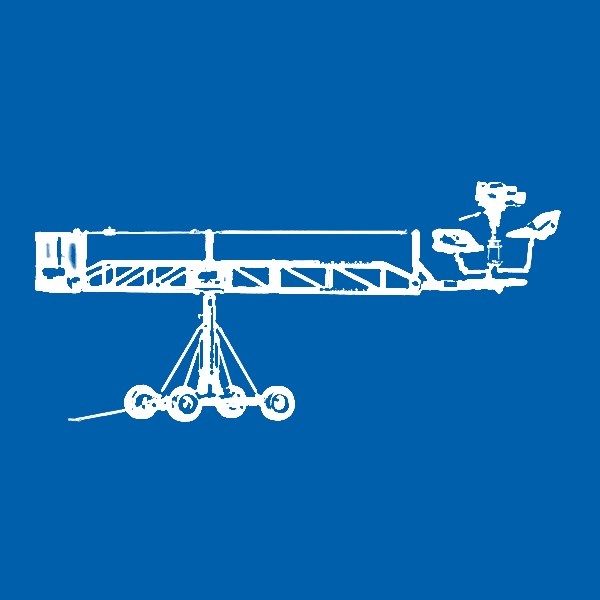

Tulip kraan
This "legend" is still one of the most stable and reliable cranes today.
The Tulip-version (platform crane) measures 4.4 m. The Tulip Crane can support two people.
This crane is also very stable on tracks.
SPECS
Max Payload
170 kg (374.79 lbs)
Max Length (Pivot to Front End)
4.4 m (14.44 ft)
Rear Section Length (Pivot to Rear End)
2.1 m (6.89 ft)
Max lens height
4.73 m (15.52 ft)
Dolly Length
1.35 m (4.43 ft)
Dolly Width
0.98 m (3.22 ft)
Footprint 360° Length
6 m (19.68 ft)
Footprint 360° Width
6 m (19.68 ft)
Footprint 180° Length
6 m (19.68 ft)
Footprint 180° Width
3 m (9.84 ft)
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
