maxi-jib

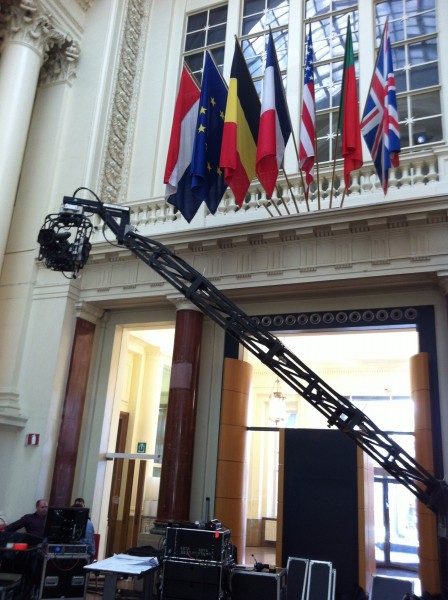

The Maxi-Jib is a classic light studio crane. It’s ideal for smaller studio settings. The arm can be built in different lengths between 1.50 m and 4.60 m. The Maxi-Jib is light, slim and easily movable without compromising stability. The Maxi-Jib can be mounted on different dollies and can be equipped with most remote heads.
SPECS
Max Payload (Head + Camera)
35 kg (77 lbs)
Max Length (Pivot to Front End)
4.6 m (15.09 ft)
Min Length (Pivot to Front End)
2.6 m (8.8 ft)
Rear Section Length (Pivot to Rear End)
2.04 m (6.69 ft)
Max Lens Height Overslung
4.65 m (15.6 ft)
Max Lens Height Underslung
4.65 m (15.6 ft)
Dolly Length
0.83 m (2.72 ft)
Dolly Width
0.89 m (2.92 ft)
Footprint 360° Length
4 m (13.12 ft)
Footprint 360° Width
4 m (13.12 ft)
Footprint 180° Length
4 m (13.12 ft)
Footprint 180° Width
2.5 m (8.20 ft)
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
