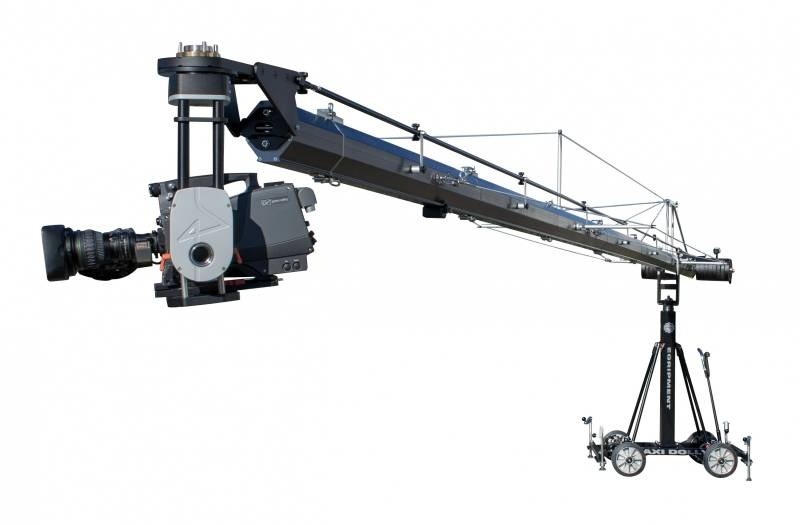

TDT Remote Crane
The TDT remote crane is a new concept for the lightweigt remote camera cranes that can be combined with our 306 remote head.
The TDT “one-man” remote crane system is a nice simple design and easy to build up. The TDT crane is a modular system with arm sections of 1,5m/5ft long. This gives the user the ability to transport the complete arm in a small vehicle.
The TDT crane system can be built up in different versions from 1.5m/5ft up to 9m/30ft. Because of the modular system you can create a variety of 6 different crane arms with the TDT system, with a maximum payload of 30kg/65lbs. We can also offer a short back-end of 1.80m/5.91ft and that up to a armlength of 4.5m/14.75ft.
SPECS
Max Payload (Head + Camera)
30 kg (66.14 lbs)
Max Length (Pivot to Front End)
9 m (29.53 ft)
Min Length (Pivot to Front End)
1.5 m (4.92 ft)
Rear Section Length (Pivot to Rear End)
1.8/2.8 m (5.9/9.2 ft)
Max Lens Height Overslung
9.26 m (30.38 ft)
Total Maximum Weight
300 kg (661.39 lbs)
Footprint 360° Length
5 m (16.4 ft)
Footprint 360° Width
5 m (16.4 ft)
Footprint 180° Length
5 m (16.4 ft)
Footprint 180° Width
4 m (13.12 ft)
Track Wheels
Yes
Track Size
620 mm (24.41 inch)
