U-Crane 6



The U-Crane 6 is the latest addition to the existing Academy Awards winning fleet of stabilized camera crane systems. It is a high end and very versatile camera technology that offers an unprecedented performance in speed, image stabilization, flexibility and a quality of control.

The U-Crane 6 is a gyrostabilized camera crane system capable of mounting on a roof of camera car or any other specialized vehicles to enable a 360° pan movement of camera while tilting up and down. U-Crane engineered and developed to allow filmmakers to shoot moving vehicles from just about any and every angle providing very stable and accurate, and of course, most amazing tracking shots done ever before. It is remotely operated and fully controllable and adjustable from within a camera car cabin. Shots are setup on the fly & adjusted instantly. Sequences can be as dynamic as your imagination.

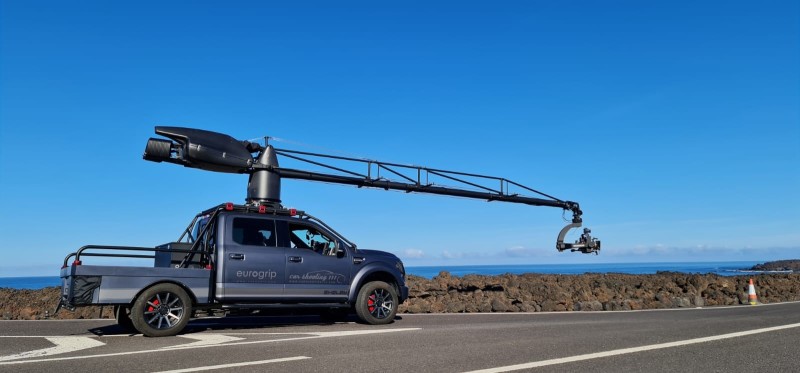

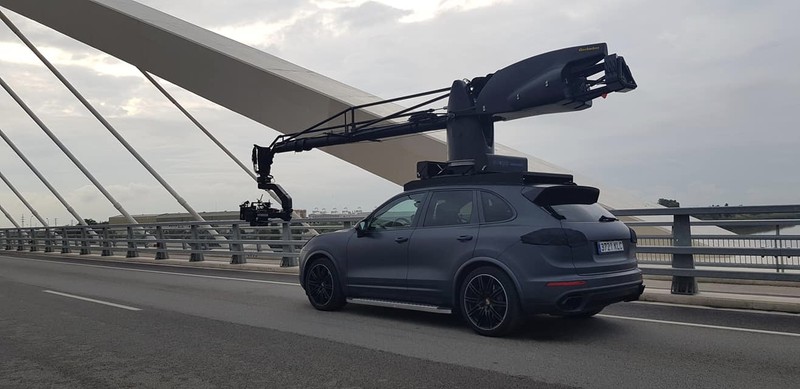

The U-Crane 6 can be mounted on our Porsche Cayenne and on the Ford F-150 Shelby. This allows us to offer the best combination between car and crane to achieve the best result for the desired shot.

SPECS

Max Payload
80 - 120 kg (176 - 265 lbs)
Max Length (Pivot to Front End)
7.6 m (24.93 ft)
Min Length (Pivot to Front End)
4.5 m (14.76 ft)
Overall Extended Length
9.5 m (31.17 ft)
Max Speed
160 km/u (99 mph)
Max Pan Speed
5 sec/360°
Max Tilt Speed
1.5 sec/45°
Pan limit
360°, 3 Rotations
Tilt limit
45°

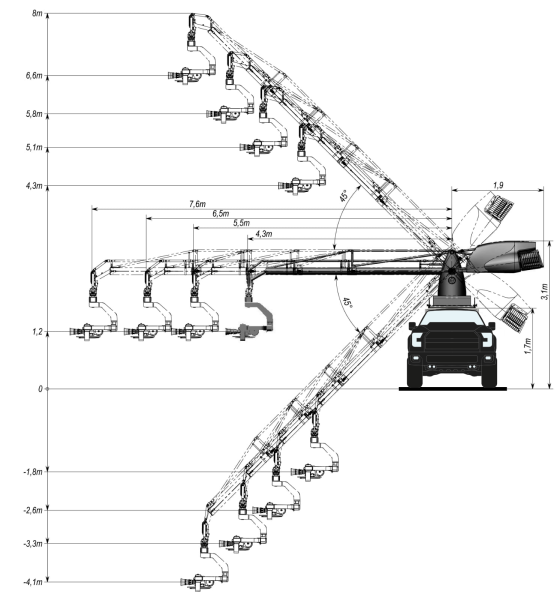

Lift range
8 m (26.24 ft)
Max Crane Weight (Fully Loaded)
690 kg (1521 lbs)
Power Requirement
32 - 42 V, 300 Amp
Adjustable Length
Yes
Telescopic
No
Weather Proof
Yes
